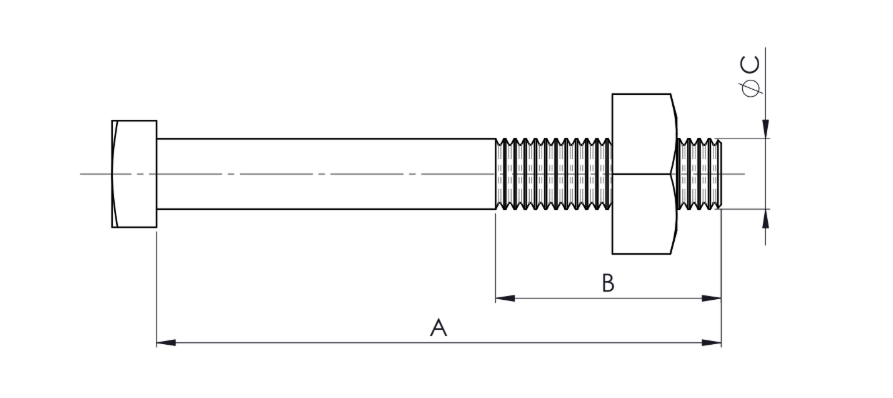

Bulon con tuerca

Material:

Acero SAE 1010

Tratamiento:

Cincado en caliente según IRAM 20022

CÓDIGO	Denominación	Largo útil A [mm]	Largo Rosca B [mm]	øC de rosca [pulg]
´010404000004800	MN 48	38	22	12.7 (1/2")
´010404000004810	MN 48A	25	20	9.5 (3/8")
´010404000004900	MN 49	127	70	12.7 (1/2")
´010404000005000	MN 50	178	76	12.7 (1/2")
´010404000005100	MN 51	203	102	12.7 (1/2")
´010404000005200	MN 52	254	102	12.7 (1/2")
´010404000005300	MN 53	203	102	15.9 (5/8")
´010404000005400	MN 54	254	102	15.9 (5/8")
´010404000005500	MN 55	305	152	15.9 (5/8")
´010404000005600	MN 56	356	152	15.9 (5/8")
´010404000005700	MN 57	406	152	15.9 (5/8")
´010404000005800	MN 58	457	152	15.9 (5/8")
´010404000005900	MN 59	64	51	12.7 (1/2")
´010404000005910	MN 59A	70	51	12.7 (1/2")
´010404000006000	MN 60	89	60	12.7 (1/2")
´010404000006100	MN 61	356	152	19.0 (3/4")
´010404000006200	MN 62	406	152	19.0 (3/4")
´010404000006300	MN 63	457	152	19.0 (3/4")
´010404000006400	MN 64	89	41	15.9 (5/8")
´010404000006410	MN 64A	110	51	15.9 (5/8")
	MN 65	127	51	15.9 (5/8")
´010404000006600	MN 66	152	51	15.9 (5/8")
