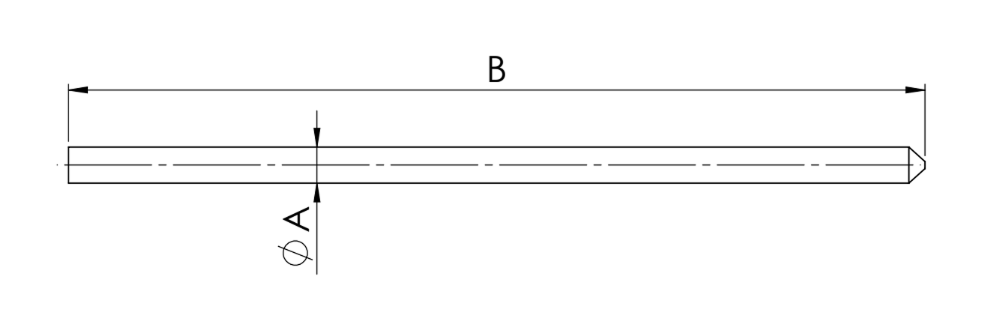

Jabalina Acero-Cobre
Material:
Acero F24
Tratamiento:
Cobre electrolitico según IRAM 2309
| CÓDIGO | Denominación comercial [pulg] | Denominación IRAM | øA [mm] | B [mm] | PESO [kg] |
|---|---|---|---|---|---|
| '010500010101000 | 3/8" | JL - 10 | 9 | 1000 | 0.5 |
| '010500010101500 | 3/8" | JL - 10 | 9 | 1500 | 0.75 |
| '010500010102000 | 3/8" | JL - 10 | 9 | 2000 | 1 |
| '010500010141000 | 1/2" | JL -14 | 12,6 | 1000 | 0.98 |
| '010500010141500 | 1/2" | JL -14 | 12,6 | 1500 | 1.47 |
| '010500010142000 | 1/2" | JL -14 | 12,6 | 2000 | 1.96 |
| '010500010142500 | 1/2" | JL -14 | 12,6 | 2500 | 2.45 |
| '010500010143000 | 1/2" | JL -14 | 12,6 | 3000 | 2.94 |
| '010500010161000 | 5/8" | JL - 16 | 14,6 | 1000 | 1.31 |
| '010500010161500 | 5/8" | JL - 16 | 14,6 | 1500 | 1.965 |
| '010500010162000 | 5/8" | JL - 16 | 14,6 | 2000 | 2.62 |
| '010500010162500 | 5/8" | JL - 16 | 14,6 | 2500 | 3.275 |
| '010500010163000 | 5/8" | JL - 16 | 14,6 | 3000 | 3.93 |
| '010500010181000 | 3/4" | JL - 18 | 16,2 | 1000 | 1.62 |
| '010500010181500 | 3/4" | JL - 18 | 16,2 | 1500 | 2.43 |
| '010500010182000 | 3/4" | JL - 18 | 16,2 | 2000 | 3.24 |
| '010500010182500 | 3/4" | JL - 18 | 16,2 | 2500 | 4.05 |
| '010500010183000 | 3/4" | JL - 18 | 16,2 | 3000 | 4.86 |
| '010500010183500 | 3/4" | JL - 18 | 16,2 | 3500 | 5.67 |
